600KHz, 18V，2A Synchronous Step-Down Converter
FEATURES
High Efficiency: Up to 98%
600KHz Frequency Operation
2A Output Current
No Schottky Diode Required
4.0V to 18V Input Voltage Range
0.6V Reference
Slope Compensated Current Mode
Control for Excellent Line and
Load Transient Response
Integrated internal compensation
Stable with Low ESR Ceramic Output
Capacitors
Over Current Protection with
Hiccup-Mode
Thermal Shutdown
Inrush Current Limit and Soft Start

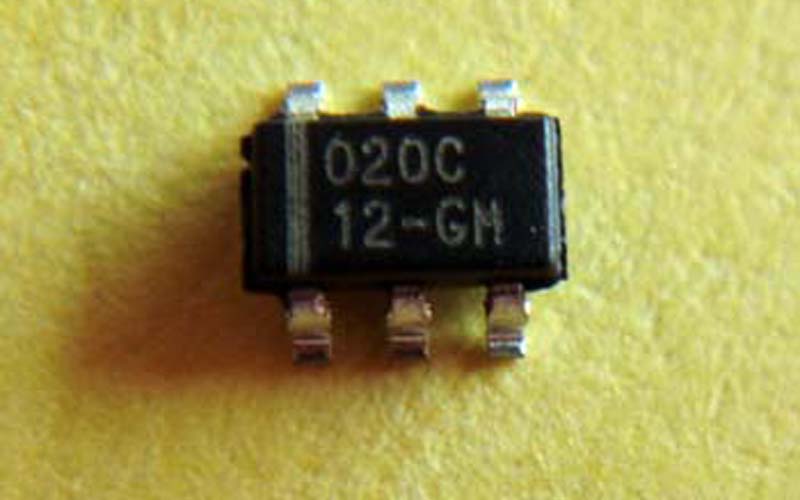

Available in SOT23-6 Package
-40°C to +85°C Temperature Range
APPLICATIONS
Distributed Power Systems
Digital Set Top Boxes
Flat Panel Television and Monitors
Wireless and DSL Modems
Notebook Computer
GENERAL DESCRIPTION
The 1496A is a fully integrated, high
efficiency 2A synchronous rectified step
down converter. The 1496A operates
at high efficiency over a wide output current
load range. This device offers two
operation modes, PWM control and PFM
Mode switching control, which allows a
high efficiency over the wider range of the
load. The 1496A requires a minimum
number of readily available standard
external components and is available in a
6-pin
